Electric appliances & electronics

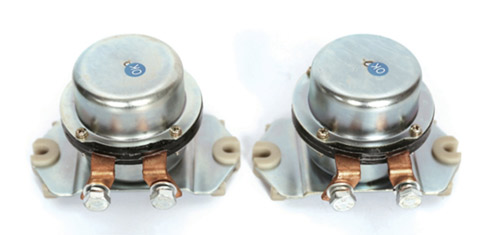

Battery Relay

Specifications

Rated voltage

 DC 12V / 24V
Rated load

100A(continuous), 1000A( 30 SEC)

Min. operationg volatage

Under DC 20V (AT20℃, COIL-COLD )

Open voltage

Under DC 9V (AT20℃, COIL-COLD)

Insulation resistance

Between Case and each terminals : DC500V

Insulation Int.pressure

Between Case and each terminals : Over 1min. Of power freq.

Operating temperature

-30℃ ~ +80℃

Preserving temperature

-40℃ ~ +100℃
